RV In-Wall Slide-Out Motor, 12V, 300:1 High Torque Gear Ratio D2509

RV In-Wall Slide-Out Motor, 12V, 300:1 High Torque Gear Ratio D2509

$21.90 $72.74
Shipping calculated at checkout.

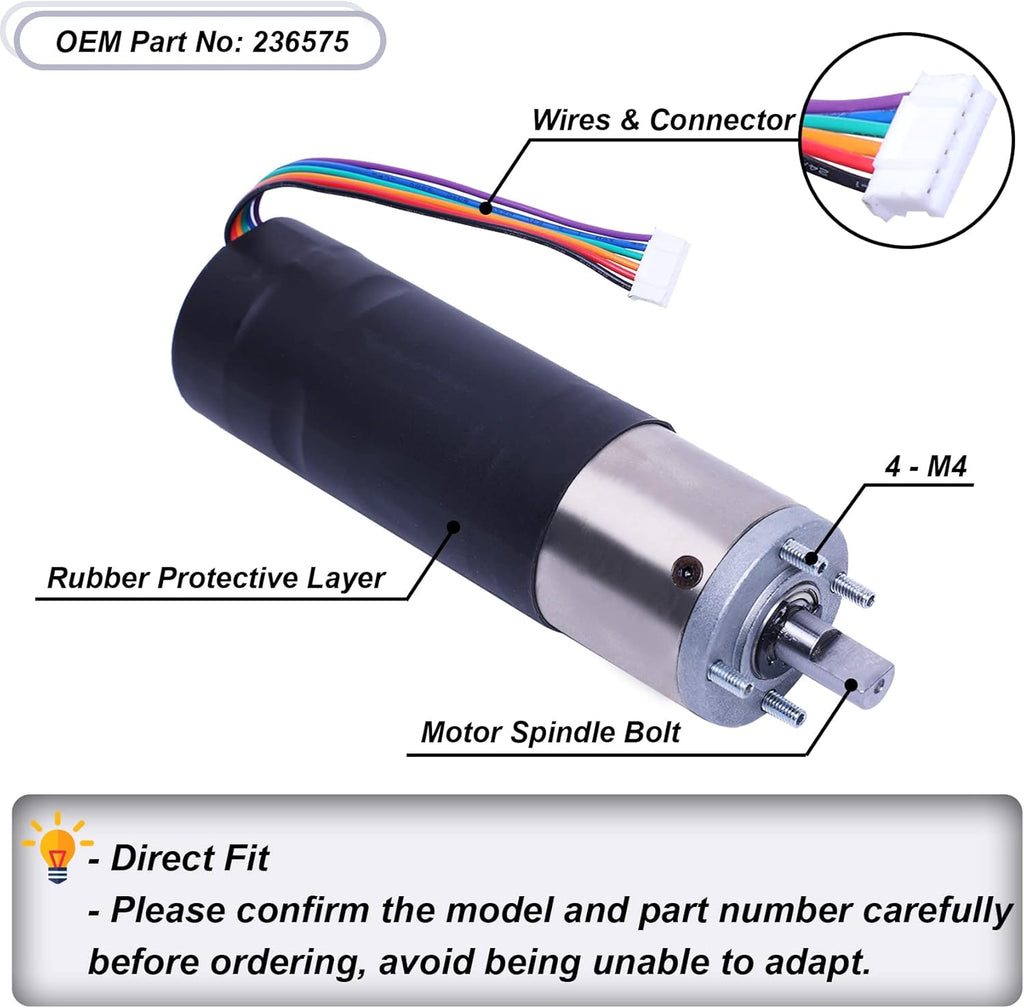

【OEM STANDARD】This RV In-wall slide-out motor is manufactured in accordance with OE specifications. Meet or exceed OEM standards and can be directly installed. The wires can be directly connected to the original connector; the motor spindle bolts and receptacle fit closely to ensure stable installation and use.
【COMPATIBLE MODELS】Directly fit for Lippert Schwintek In-Wall Slide System. Perfect replacement for slide motor of 2014 Grey Wolf 26 dbh slide out, 2016 Coachman Prism LE 2200, 2018 Montana, etc. Please refer to your user manual before purchasing to ensure compatibility. (Replace Part Number: 236575)
【UPGRADED QUALITY】This slide-out motor can provide excellent performance and long service life. A rubber compartment is installed on the outside to effectively protect the internal circuit. Better circuit connection and surface treatment process than most similar products. Replace the old slide-out motor and enjoy your travel time!

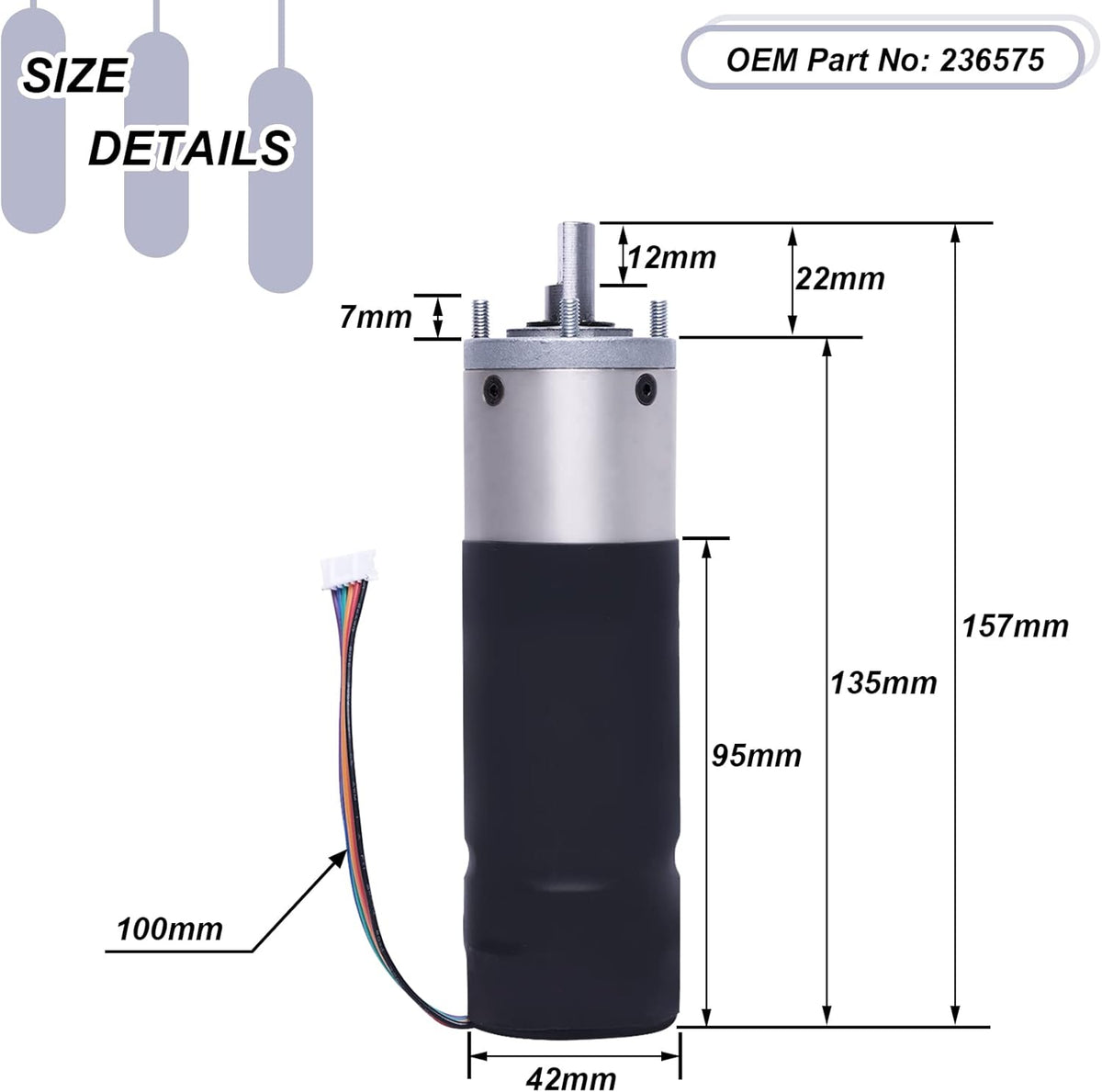

【EASY TO INSTALL】Our In-wall slide out Motor is the same size as the original parts (236575), you can directly replace it yourself and finish it in 10 minutes! It saves you the time of changing back and forth, and also helps you save money. (Tips: The detailed replacement steps are in the description.)
【100% SATISFACTION SERVICE】If you have any questions or dissatisfaction, please email us and we will help you solve it perfectly - 36 Months Warranty & 24 Hours Service.

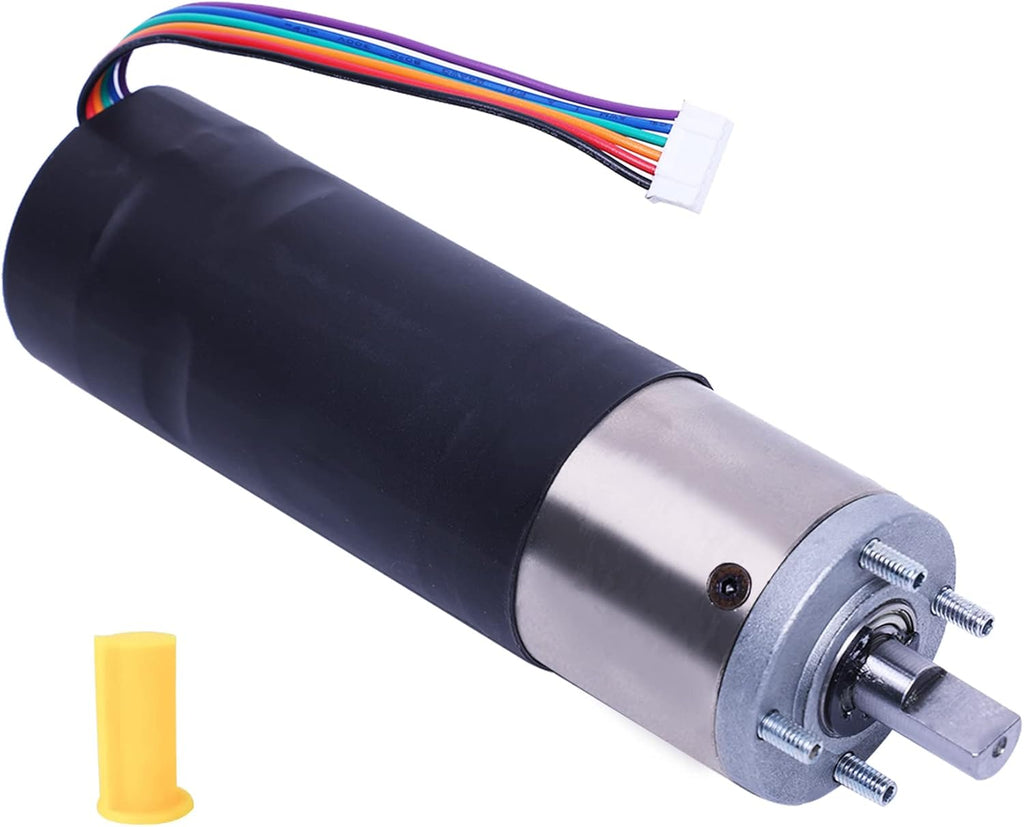

RV IN-WALL SLIDE-OUT MOTOR

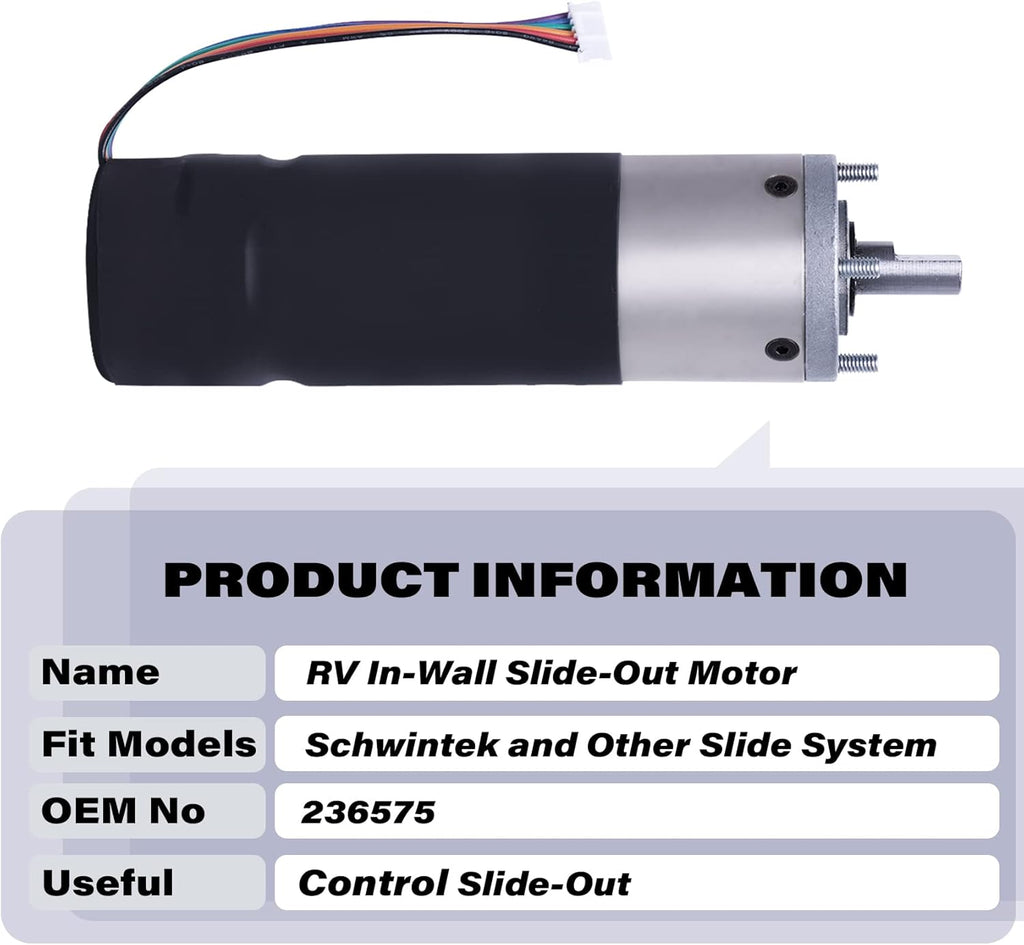

Product Specifications:

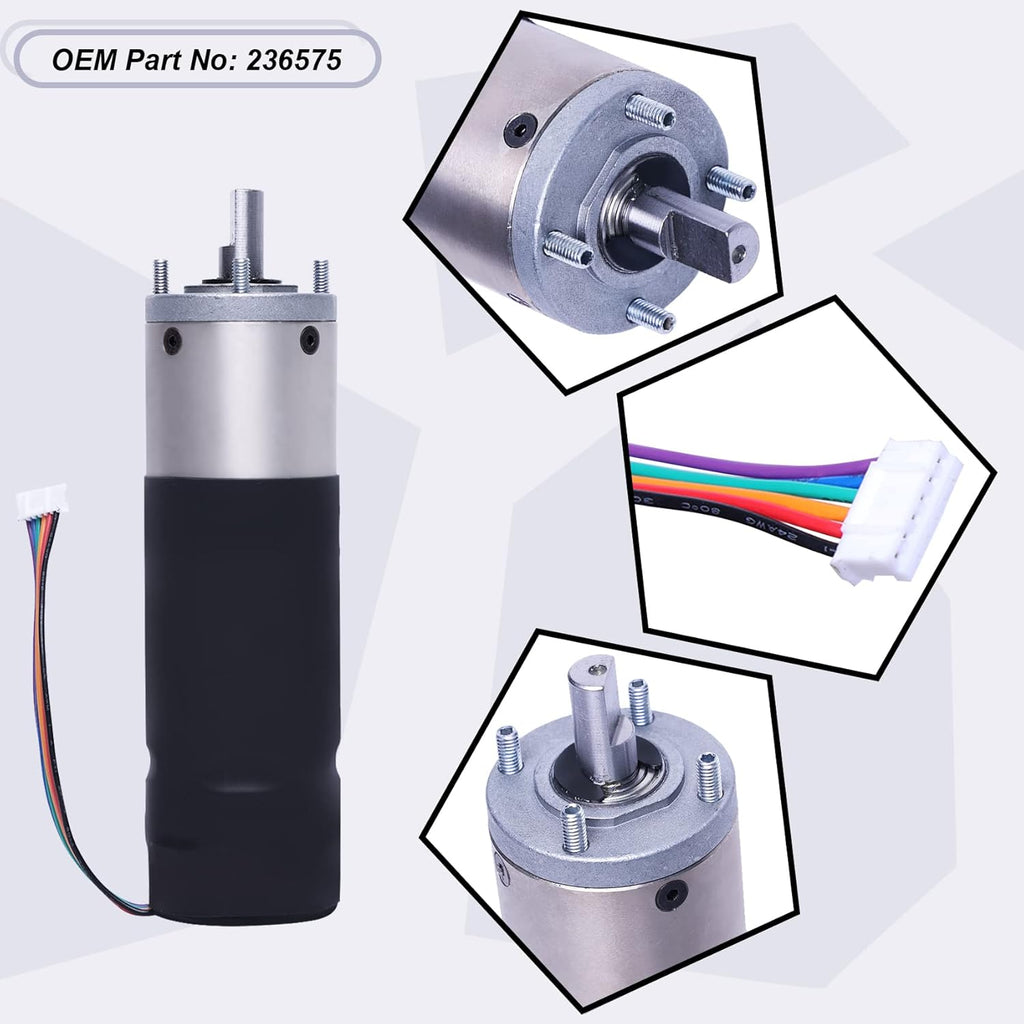

Replace Part Number: 236575

300:1 High torque gear ratio motor

Voltage 12V

No-load Speed 26rpm

No-load Current <1.3A

Rated Speed 22rpm

Encoder 10 Pole 5ppr

How to detect failures?

1. Test the original motor harness with the test harness.

  • If the fault code stays, the original motor harness doesn't need to be replaced. After the test is complete, replace the test motor harness with the original harness.

2. Test the controller by switching the original motor harnesses to the controller.

  • Operate slide-out and if the fault code stays the same the controller needs to be replaced.
  • If the fault code changes, the motor needs to be replaced.
  • After the test is complete, return motor harnesses back to the original locations.

How to Replace and Install？

1. Outside the coach, locate and remove the motor retention screw.

2. Inside the coach, remove the seal to access the motor notch. unplug the motor and lift the motor up within the h-column, then pull out of the motor notch once the shaft is clear/visible.

3. Replace the new motor. Reinsert the motor wiring harness, restore the seal and replace the motor fixing screws.

Tips: please note the connection between the Encoder wire and the motor (Proper connection for proper motor operation).

Package

1* In-Wall Slide-Out Motor

Notes

1. Please check your model and part number carefully before ordering. If you have any questions about model or installation or other aspects, please email us.

2. If you are not satisfied with this item, please feel free to let me know. We will get back to you within 24 hours. We will provide a replacement or help you solve it perfectly.
